Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

Product image 1
1 / 4

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

  • Inputs:
    PV solar
    AC grid power
    Batteries
    Generator

  • Output voltage –
    120/240Vac (split phase),
    208Vac (2/3),
    (single phase) 230Vac

  • Continuous power
    8000W

  • Backup power - 8000W

  • DC – 48V

  • Battery charger – 190A

  • Transfer time <= 10ms

  • Battery charger adjustable for battery bank size and type
    Can charge Lead Acid and Li-ion batteries
    Li-ion battery charging self-adapts to BMS


  • Solar Input
    Max power input – 10400W
    Max V DC input – 370V (100V~500V)
    Max current input – 26A+26A
    MPPTs – 2
    MPPT Range – 125~425V

  • Multi-core processor design and advanced MPPT control

  • High reliability and response speed

  • Programmable export

  • Works parallel on or off-grid

  • Single

  • Multiple operating modes:
    Grid-tie only
    Hybrid
    Off-grid
    Battery only

  • Additional features
    AC couple – For additional PV input
    6 stages time of use settings

  • IP65

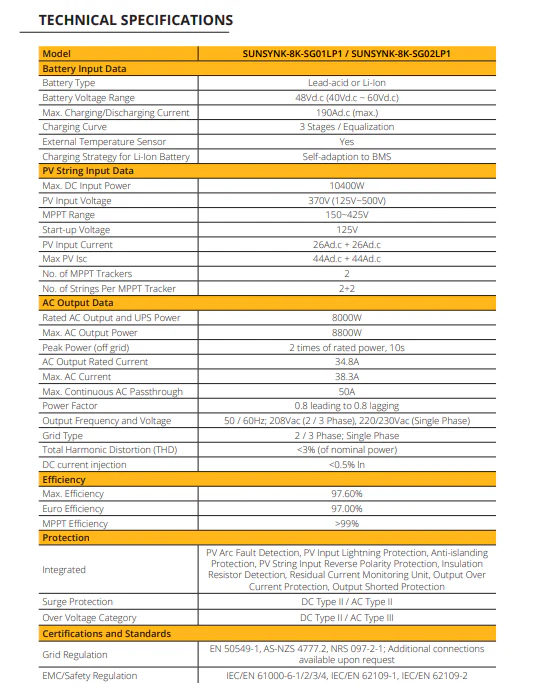

General Data
Net Weight : 26.8kg
Warranty : 5 years (10 when installed with a Sunsynk battery)

$24,350.00
Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1—
$24,350.00

Product Information

Shipping & Returns

Description

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

  • Inputs:
    PV solar
    AC grid power
    Batteries
    Generator

  • Output voltage –
    120/240Vac (split phase),
    208Vac (2/3),
    (single phase) 230Vac

  • Continuous power
    8000W

  • Backup power - 8000W

  • DC – 48V

  • Battery charger – 190A

  • Transfer time <= 10ms

  • Battery charger adjustable for battery bank size and type
    Can charge Lead Acid and Li-ion batteries
    Li-ion battery charging self-adapts to BMS


  • Solar Input
    Max power input – 10400W
    Max V DC input – 370V (100V~500V)
    Max current input – 26A+26A
    MPPTs – 2
    MPPT Range – 125~425V

  • Multi-core processor design and advanced MPPT control

  • High reliability and response speed

  • Programmable export

  • Works parallel on or off-grid

  • Single

  • Multiple operating modes:
    Grid-tie only
    Hybrid
    Off-grid
    Battery only

  • Additional features
    AC couple – For additional PV input
    6 stages time of use settings

  • IP65

General Data
Net Weight : 26.8kg
Warranty : 5 years (10 when installed with a Sunsynk battery)
