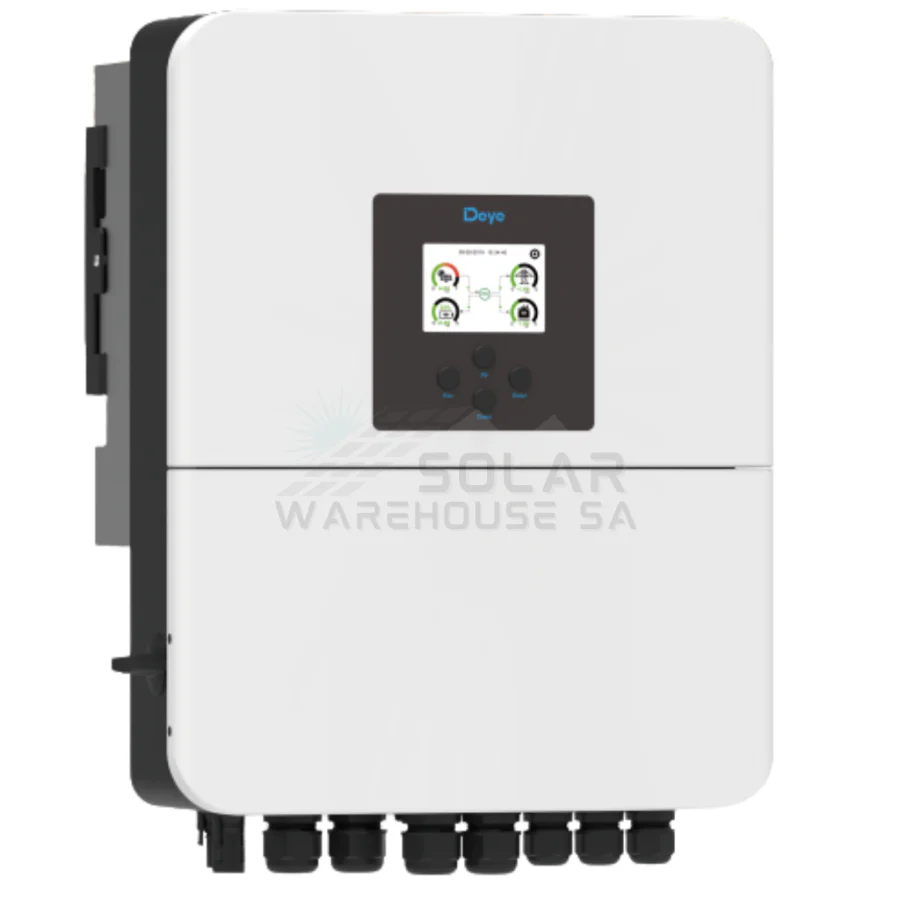

Deye 6KW Hybrid Inverter Including Wifi Dongle  (SUN-6K-SG04LP1-EU-SM2)

-Colorful touch LCD, IP65 protection degree
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 140A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator

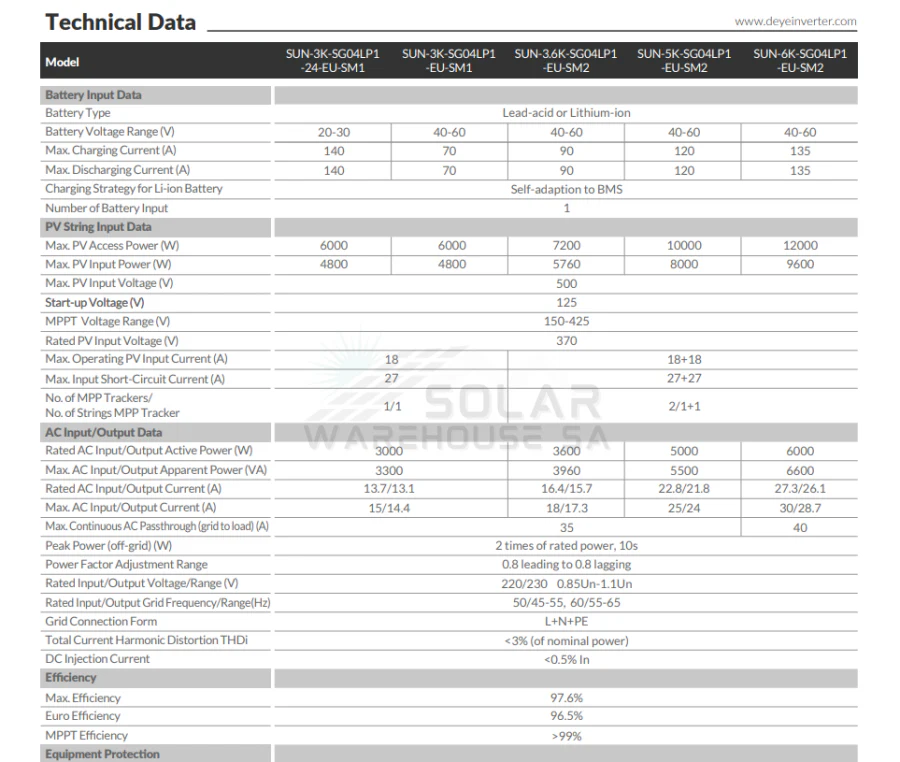

AC Input/Output Data:

Rated AC Input/Output Active Power (W) 6000
Max. AC Input/Output Apparent Power (VA) 6600
Rated AC Input/Output Current (A) 27.3/26.1
Max. AC Input/Output Current (A) 30/28.7
Max. Continuous AC Passthrough (grid to load) (A) 40
Peak Power (off-grid) (W) 2 times of rated power, 10s

PV String Input Data:

Max. PV Access Power (W) 12000
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370

SIZE:

376×470×241.5 (Excluding Connectors and Brackets)

19 Kg

5 Years Warranty
