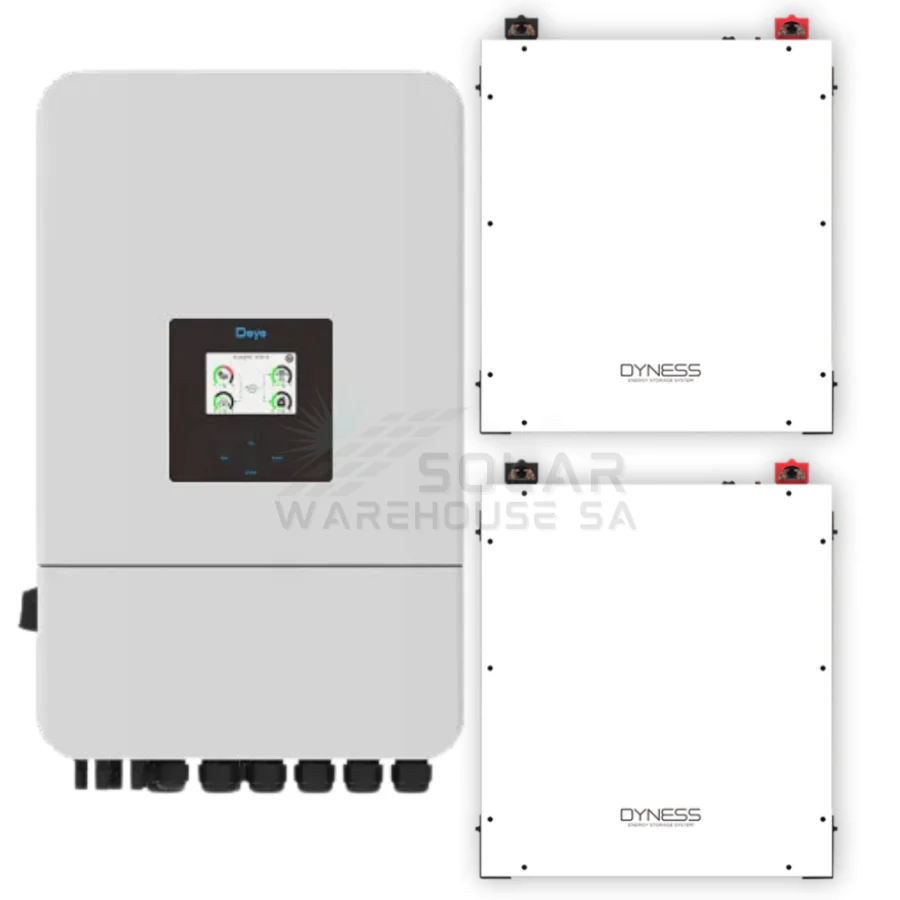

8KW MPPT Deye Load Shedding 2x Dyness 5.12 KWh Backup Power Combo Kit
8KW MPPT Deye Load Shedding 2x Dyness 5.12 KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO
Inverter Specifications:
The Deye 8kW NEW GEN Single Phase Hybrid Inverter (SUN-8K-SG05P1-EU-SM2) combines power and efficiency in a smaller, more compact design, making it perfect for modern homes and businesses with limited space. This advanced inverter builds on the features of its predecessor while offering enhanced versatility and compatibility.
Key Features:
- Compact Design: Smaller and more space-efficient, ideal for tight installation areas.
- High Capacity: 8kW output to handle medium to large energy demands.
- Expanded Compatibility: Supports more solar panels for greater energy generation.
- Hybrid Operation: Integrates solar, battery, and grid power seamlessly.
- High Efficiency: Up to 97.6% conversion efficiency ensures optimal performance.
- Smart Management: Equipped with Wi-Fi and app control for real-time monitoring and adjustments.
Specifications:
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- External Temperature Sensor: Optional
-
Number of battery input: 1
Battery Specifications:
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
Combo includes:
-
1x Deye 8kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
2x DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2
(7 Years Warranty) - Battery cables and brackets included
Original: $47,500.00
-70%$47,500.00
$14,250.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
8KW MPPT Deye Load Shedding 2x Dyness 5.12 KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO
Inverter Specifications:
The Deye 8kW NEW GEN Single Phase Hybrid Inverter (SUN-8K-SG05P1-EU-SM2) combines power and efficiency in a smaller, more compact design, making it perfect for modern homes and businesses with limited space. This advanced inverter builds on the features of its predecessor while offering enhanced versatility and compatibility.
Key Features:
- Compact Design: Smaller and more space-efficient, ideal for tight installation areas.
- High Capacity: 8kW output to handle medium to large energy demands.
- Expanded Compatibility: Supports more solar panels for greater energy generation.
- Hybrid Operation: Integrates solar, battery, and grid power seamlessly.
- High Efficiency: Up to 97.6% conversion efficiency ensures optimal performance.
- Smart Management: Equipped with Wi-Fi and app control for real-time monitoring and adjustments.
Specifications:
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- External Temperature Sensor: Optional
-
Number of battery input: 1
Battery Specifications:
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
Combo includes:
-
1x Deye 8kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
2x DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2
(7 Years Warranty) - Battery cables and brackets included
